iQ700 warming drawer 60 x 29 cm BlackBI710D1B1B
Replacement for
BI630DNS1B
1 / 8
iQ700 warming drawer 60 x 29 cm BlackBI710D1B1B
Replacement for
BI630DNS1B
Dealer Locator
Find a dealer near to you
Technical Overview
Dimensions
290x594x518 mm
Control panel
Electronic
Maximum number of reference plates
40
Maximum number of espresso cups
192
Home Connect Footnote 1: From time to time we provide updates to preserve the functionalities of your connected home appliance (especially security updates). You know such updates from your smartphone. If you want to be informed when such an update is ready for your Home Connect enabled appliance, please proceed as follows: Download the Home Connect App. Register and connect the appliance in the App. More information will then be available in the Home Connect App.
Yes
Highlights
Special Features
– Control the multifunctional warming drawer at any time from wherever you want.
– No-handle drawer that’s easy to open and close.
Awards
Specifications
User-friendly electronics: extremely
easy and comfortable operation
Heating plate made of toughened glass
Cavity volume: 54 l
Loading up to 25 kg
Max. loading espresso cups: 192 PC or Max. loading plates: 40 PC
push&pull
Touch key operation
Temperature control in 4 levels: ca. 30 °C - 80 °C (glass surface temperature)
min. 16A single phase connection
Total connected load: 0.82kW
290 mm x 594 mm x 518 mm
Niche dimension (hxwxd): 290 mm x 560 mm - 568 mm x 550 mm

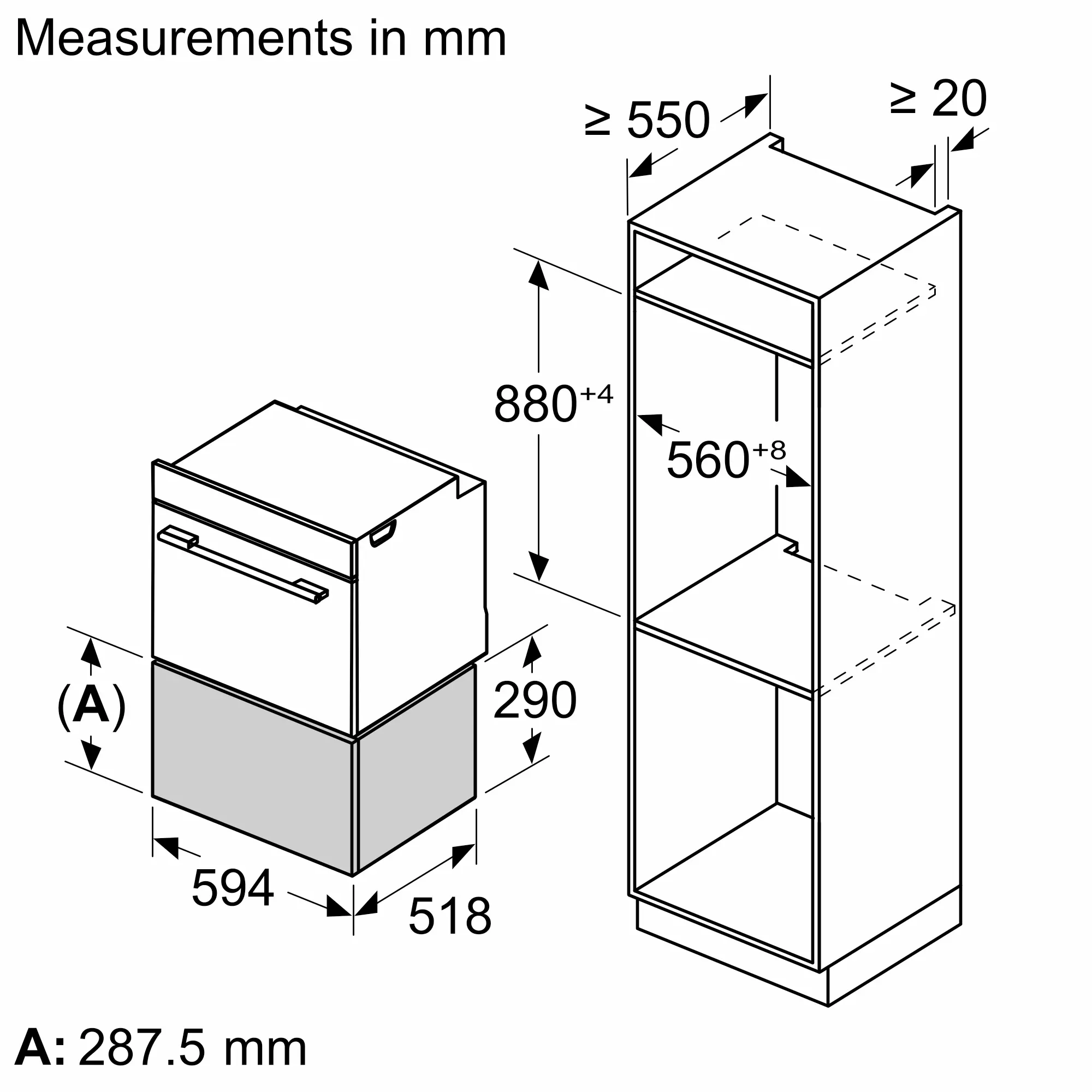

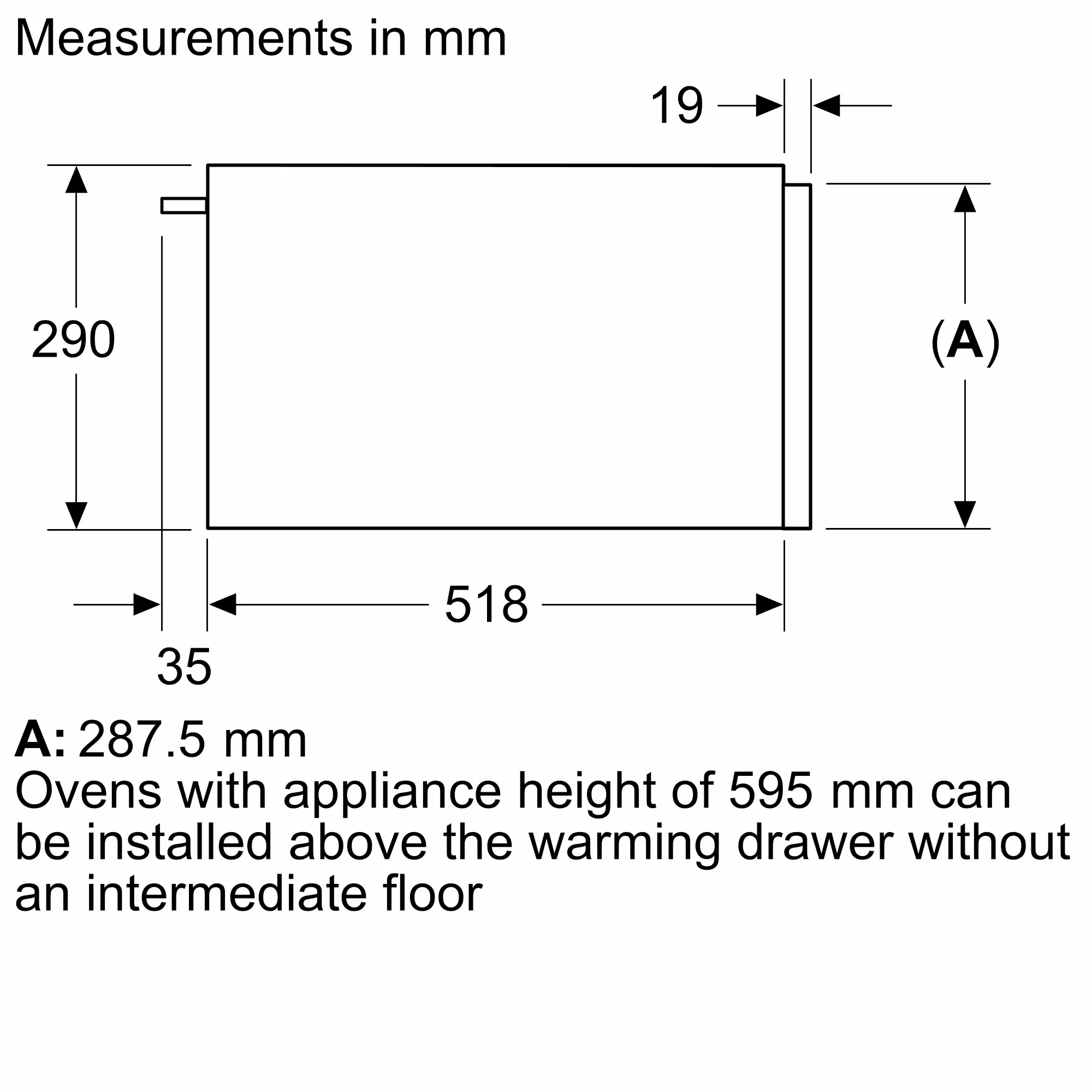

Please reference the built-in dimensions provided in the installation drawing
